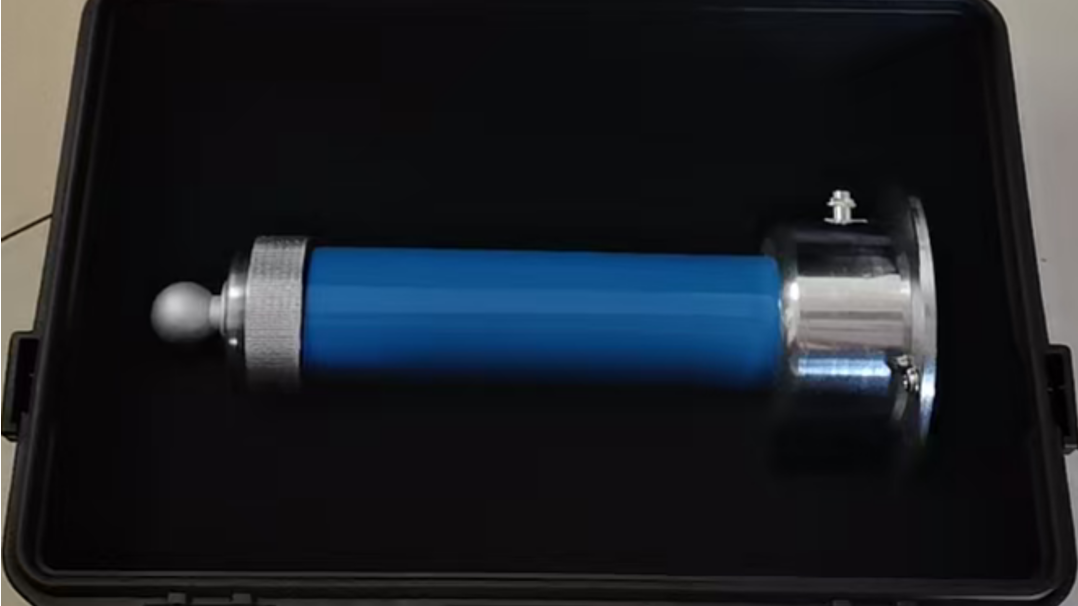

The high-speed pulse voltage divider supports pulse voltage sampling and waveform measurement. Applications can include laboratory testing and work involving high-voltage motors, transformers and instrument transformers. The product range covers 3 kV–300 kV, with the model selected for the test conditions.
Selection should consider the source, test object and acquisition equipment together. Share the intended voltage, waveform requirements, interfaces and site arrangement so our team can review the model and connection requirements.
Documentation
Retain the divider model, connection notes and acquisition settings in the test record to support subsequent waveform review.
